Sale!

16 Ton Gas Powered Horizontal Ram Splitter (H16-3)

Original price was: $1,999.99.Current price is: $1,849.99.

Product Description

Limited Time Free Shipping!

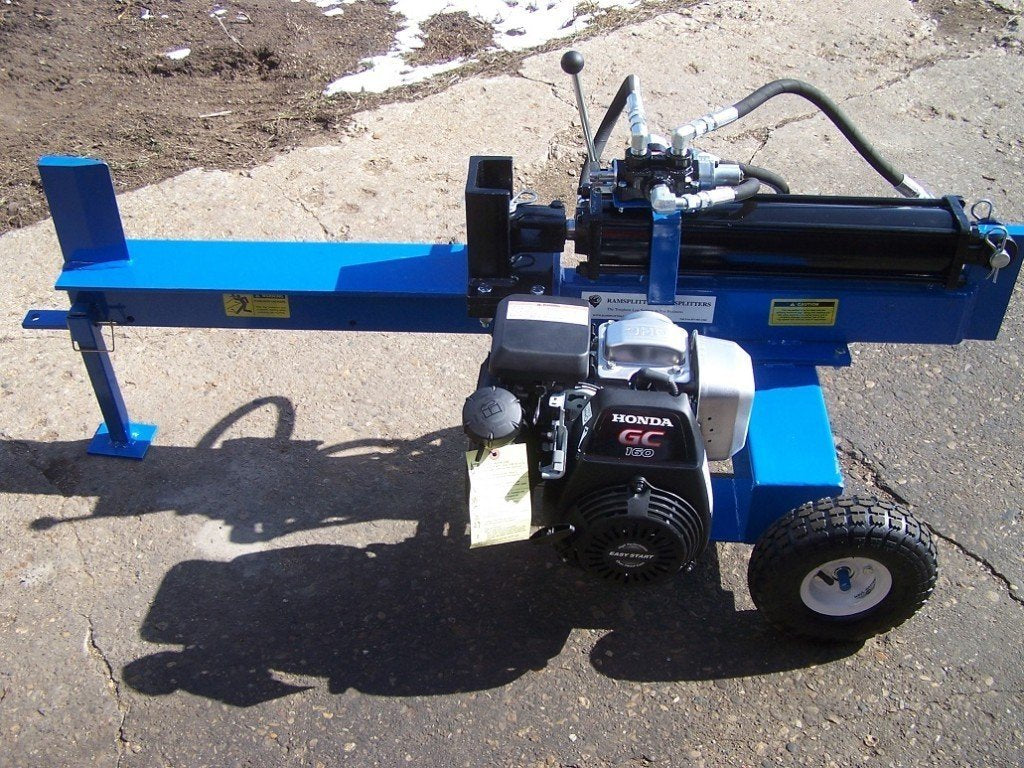

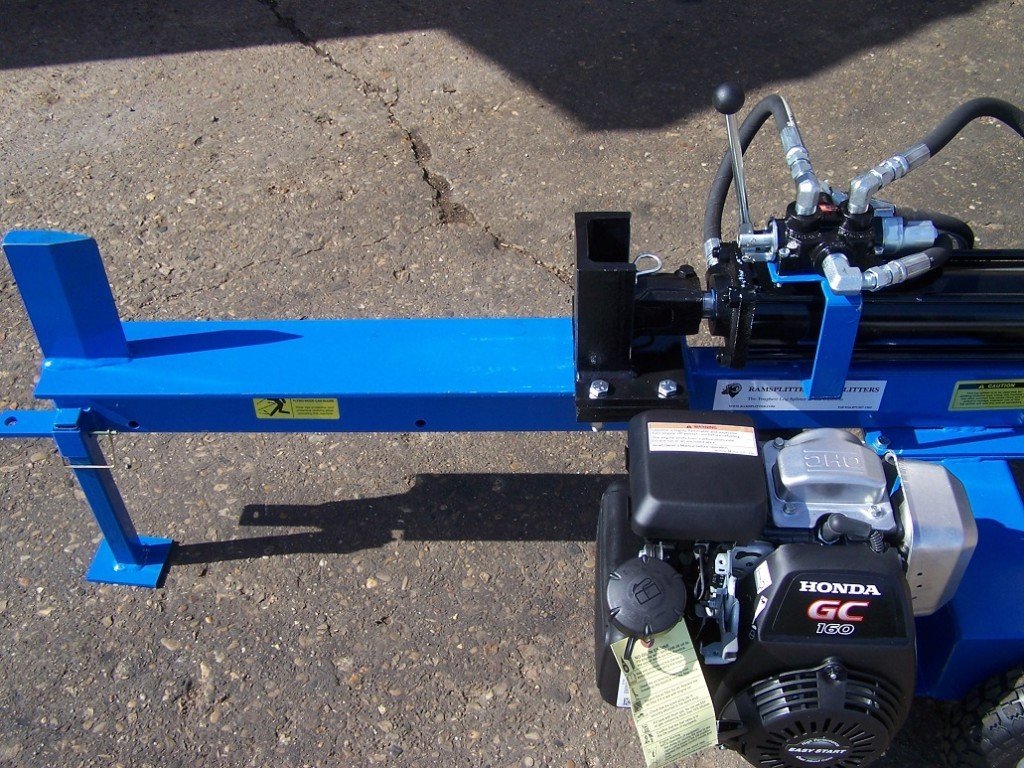

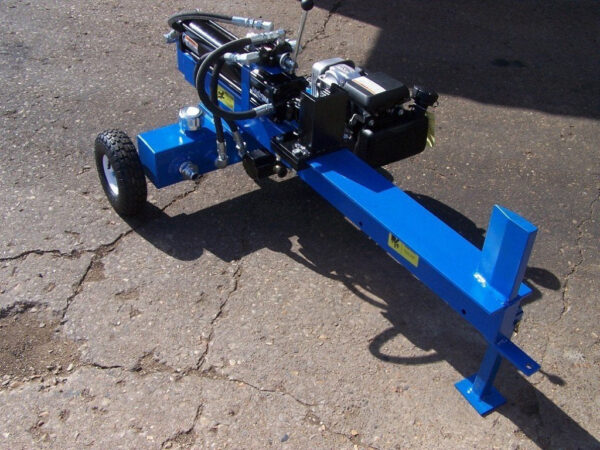

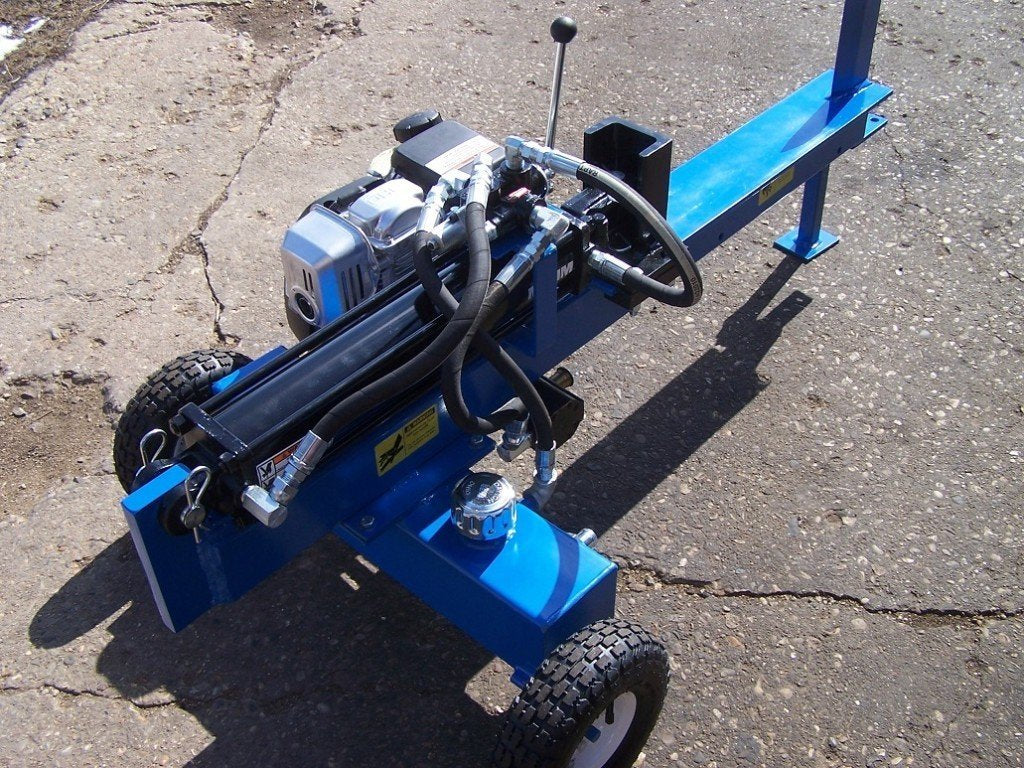

This 16 ton log splitter (H16-3) is made by Ram Splitter and comes in a horizontal configuration.  This firewood log splitter is powered by a horizontal shafted Honda GC-160 5HP motor.

This log splitter does not come with a road towable package but it is available as an option.

This log splitter is customizable with the following options:

  • 4 Way Wedge – Split logs into 4 pieces.  4 way wedge just slips over existing single wedge. (Can slide on and off quickly, choose 4 way wedge option to see picture)  4 way wedge will reduce opening size by 2″.
  • Log Cradles – Horizontal units will hold logs in place to prevent from having to hold log with hand.  Cradles are welded on time of order.
  • Tow Package – A tow package upgrade will make your log splitter road towable.  Comes with chains, 2″ ball coupler and High-Speed, 4.80 x 8” tires.  This will have a different axle system.

See options above the big green “add to cart” button for pricing and pictures.  As you select them it will built and price your splitter as you go!  Questions? Feel free to contact us at 888-706-2434 for no hassle no pressure help and advice.  We are here to help.

Please note these log splitters are delivered via freight truck.  You will be responsible to take the crate off the back of the truck unless you select lift gate delivery as an option.  Some assembly is required.

Detailed Specifications

Beam Structure:
2″ wide x 5″ tall – 5″ Top Plate Tubular Design

Splitting Wedge:
6″ High

Operating Position:
Horizontial

Force / Tonnage:
16 Ton (32,000 lbs)

Cylinder :
3.5″ x 18″

Cycle Time:
10-12 Seconds (Approx)

Log Opening :
20 Inches

Wheels & Tires:
Pneumatic tires

Road Towable:
No – Optional tow package

Motor:
Honda GC-160 5HP

Operating Size:
32″ wide and 56″ long

Hydraulic System:
4 Gallon Tank + Cylinder, and Hoses

Safety Control Valve:
Detent, Auto Return

2 Stage Pump:
11 Gallons Per Minute

Operation Weight :
275 LBS

Warranty:
1 Year / 3 Year motor

Made in USA:
Yes!

4 Way Wedge:
Optional

Tow Package:
Optional

Log Cradles:
Optional
